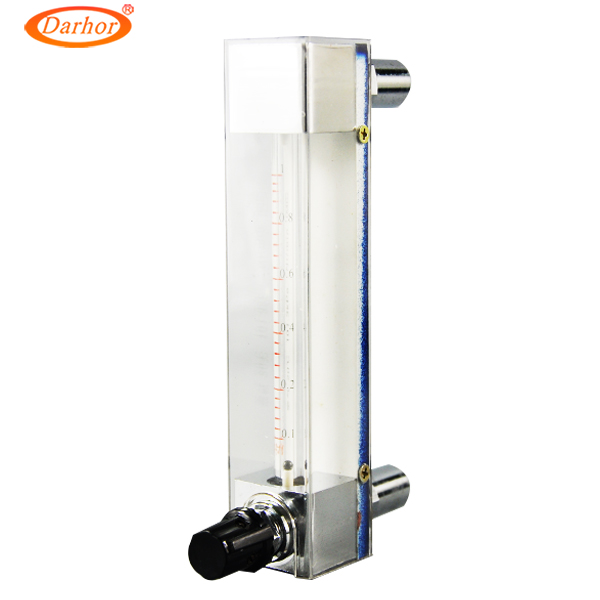

LZB glass tube rotameter
Stainless steel 304 case flow meter
glass tube flow meter
sanitary flow meter
stainless steel 304 case flow meter with glass tube inside
Technical Parameters of LZB Series Flow meter and flowmeter
|
Type |
LZB-15 |
LZB-25 |
LZB-40 |
LZB-50 |
LZB-80 |
LZB-100 |
LZB-100 |
|
|
Orifice (mm) |
15 |
25 |
40 |
50 |
80 |
100 |
100 |
|
|
Measure range |
Liquid l/h |
6-60 |
40-400 |
160-1600 |
160-1600 |
1-10m³/h |
5-25 |
20-90m³/h |
|
8-80 |
60-600 |
180-1800 |
400-4000 |
1.6-16m³/h |
6-35 |
20-100m³/h |
||
|
16-160 |
100-1000 |
250-2500 |
600-6000 |
2-20m³/h |
8-40 |
30-100m³/h |
||
|
25-250 |
160-1600 |
300-3000 |
800-8000 |
3-25m³/h |
12-60 |
50-120m³/h |
||
|
40-400 |
|
400-4000 |
1-10m³/h |
8-40m³/h |
16-80 |
|
||
|
|
|
1-5m³/h |
4-16m³/h |
|
|
|
||
|
|
|
1.5-6m³/h |
|
|
|
|
||
|
Air Nm³/h |
0.25-2.5 |
0.8-8 |
4-40 |
6-60 |
50-250 |
60-200 |
300-1500 |
|
|
0.4-4 |
1-10 |
5-50 |
10-100 |
80-400 |
80-400 |
300-1600 |
||
|
0.6-6 |
1.6-16 |
6-60 |
16-160 |
750-7500l/min |
100-500 |
400-2000 |
||
|
0.8-8 |
2.5-25 |
7-70 |
20-200 |
60-600 |
120-600 |
500-2500 |
||
|
1-10 |
3-30 |
8-80 |
30-300 |
|
200-1000 |
|
||
|
|
4-40 |
10-100 |
50-250 |
|
|
|
||
|
|
|
|
80-400 |
|
|
|
||
|
Accuracy(±%) |
2.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
1.5 |
|
|
Working pressure (Mpa) |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.6 |
≤0.4 |
≤0.4 |
≤0.4 |
|
|
Type |
Dimension (mm) |
||||
|
A |
B |
C |
D |
N-E |
|
|
LZB-15 |
95 |
65 |
470 ±2.5 |
15 |
4-14 |
|
LZB-25 |
115 |
85 |
470 ±2.5 |
25 |
4-14 |
|
LZB-40 |
145 |
110 |
570 ±3 |
40 |
4-18 |
|
LZB-50 |
160 |
125 |
570 ±3 |
50 |
4-18 |
|
LZB-80 |
185 |
150 |
660 ±3.5 |
80 |
4-18 |
|
LZB-100 |
205 |
170 |
660 ±3.5 |
100 |
4-18 |
